Panel Lifters

The Felder Format4 v-motion panel lifting range offers ergonomic, single-operator vacuum lifters designed for safe and efficient handling of panels up to 250 kg. With models like the v-motion 15.00, 15.90, Classic, 20.90 Classic, and 25.90st, the series covers both simple horizontal lifts and 0°–90° tilting for heavy or permeable materials.

Key features include reinforced crossbeams, innovative one-handed operator controls, and flexible mounting options—column-mounted, wall-mounted, or rail-mounted—making the v-motion range ideal for space-conscious, high-performance workshops.

Filter
v-motion 15.00
FORMAT 4

v-motion 15.00

POA
POA
• Maximum Load Capacity: 150 kg
• Tilting Function (0–90°): No
• Suitable for Permeable Materials: No
• Vacuum Traverse Configuration: 1.25m traverse, 2 round cups (270mm Ø)

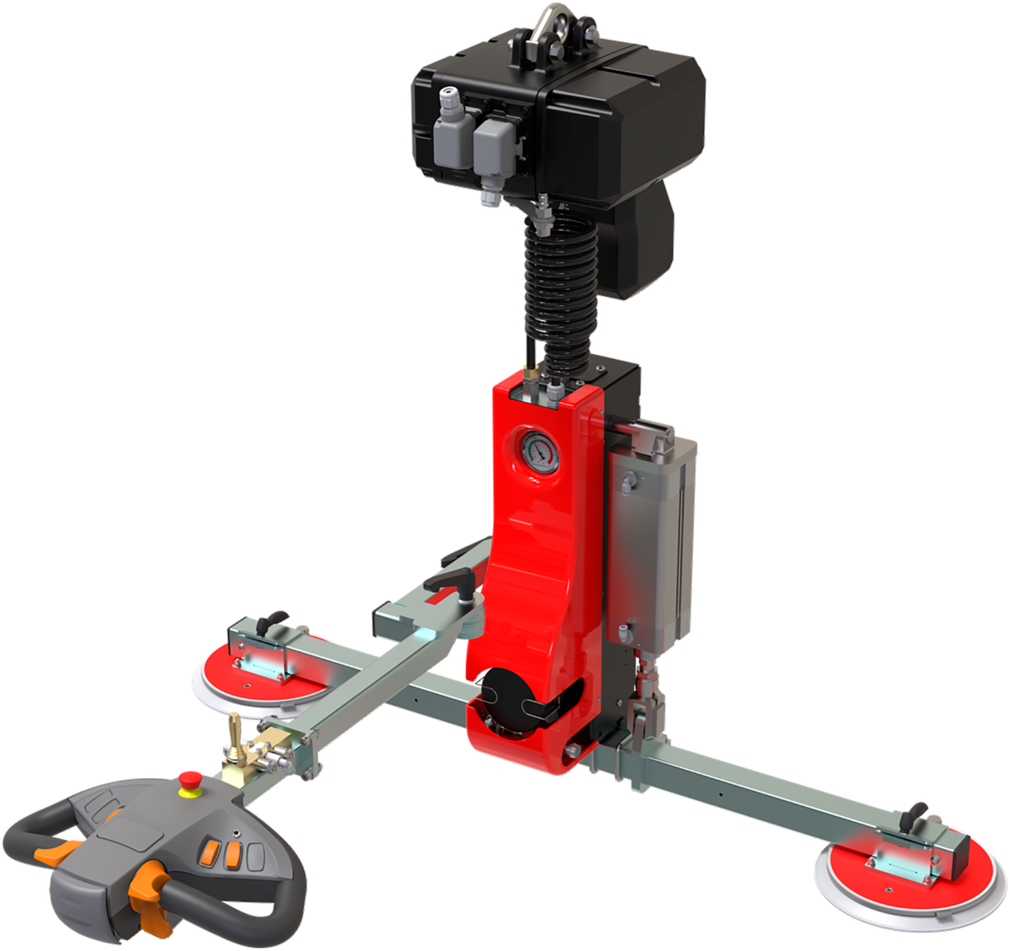

v-motion 15.90
FORMAT 4

v-motion 15.90

POA
POA
• Maximum Load Capacity: 150 kg
• Tilting Function (0–90°): Yes
• Suitable for Permeable Materials: No
• Vacuum Traverse Configuration: 1.25m traverse, 2 round cups (270mm Ø)

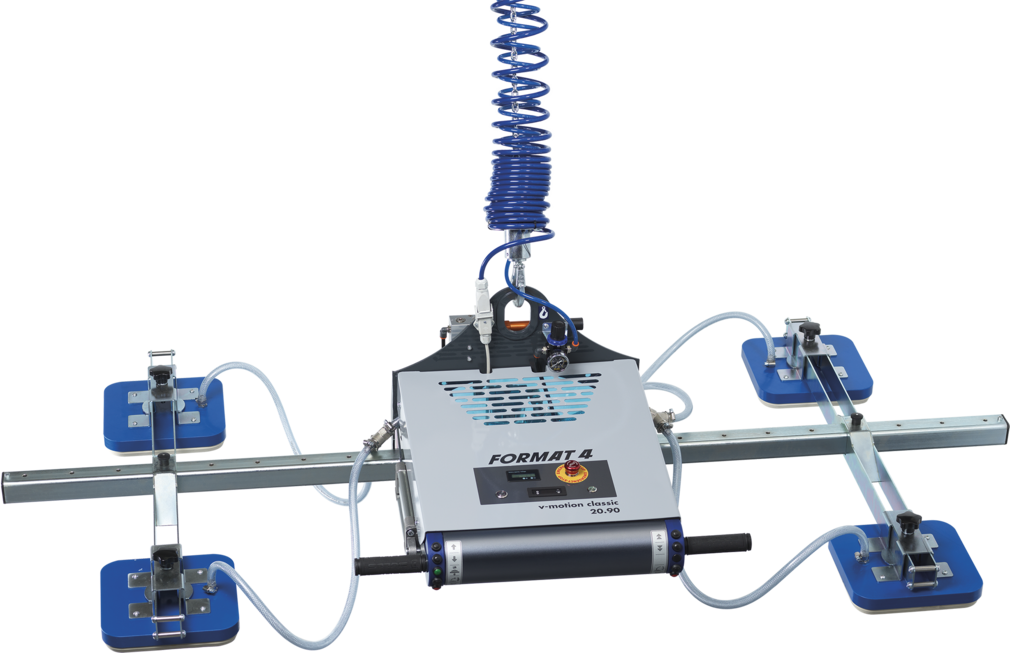

v-motion 20.90 classic
FORMAT 4

v-motion 20.90 classic

POA
POA
• Maximum Load Capacity: 200 kg
• Tilting Function (0–90°): Yes
• Suitable for Permeable Materials: MDF up to 10 mm
• Vacuum Traverse Configuration: 2m traverse, 4 cups (250x250mm)

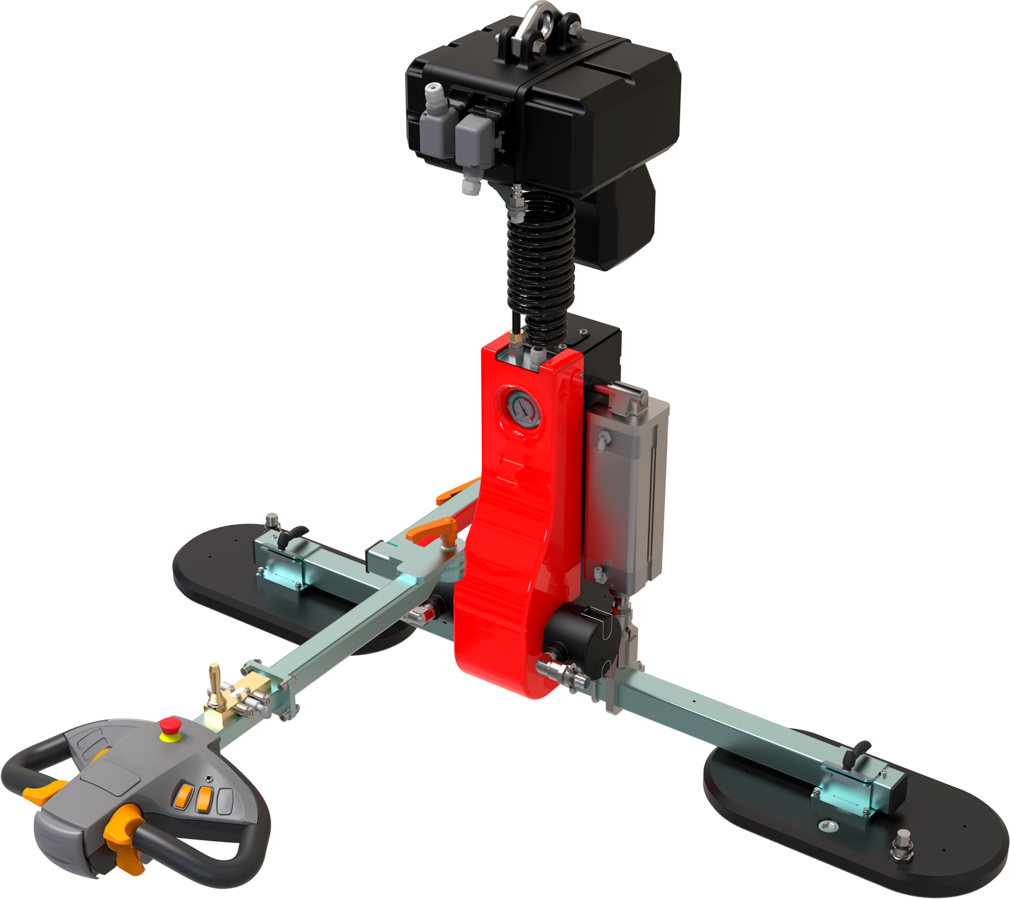

v-motion 25.90st
FORMAT 4

v-motion 25.90st

POA
POA
• Maximum Load Capacity: 250 kg
• Tilting Function (0–90°): Yes
• Suitable for Permeable Materials: MDF up to 8 mm
• Vacuum Traverse Configuration: Reinforced traverse

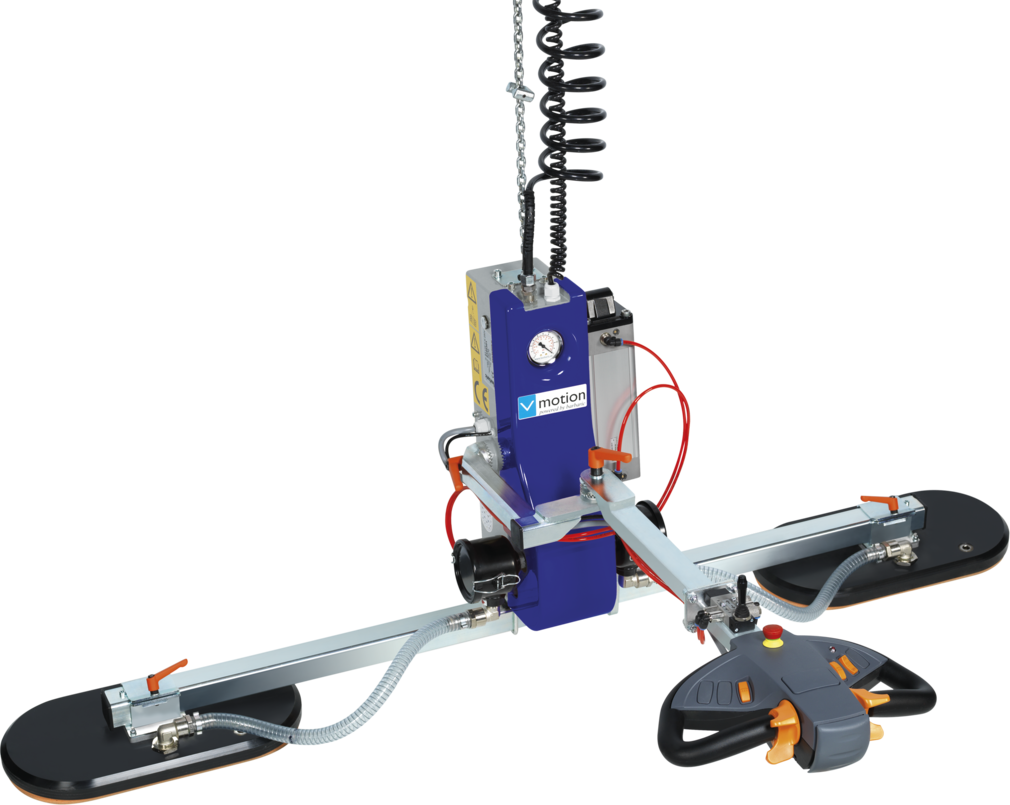

v-motion classic
FORMAT 4

v-motion classic

POA
POA
• Maximum Load Capacity: 250 kg
• Tilting Function (0–90°): Yes
• Suitable for Permeable Materials: MDF up to 8 mm
• Vacuum Traverse Configuration: 1.25m traverse, 2 oval cups (500x250mm)

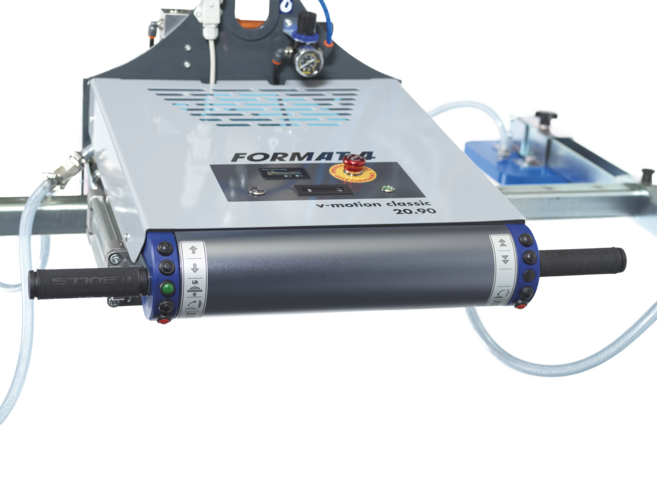

Innovative

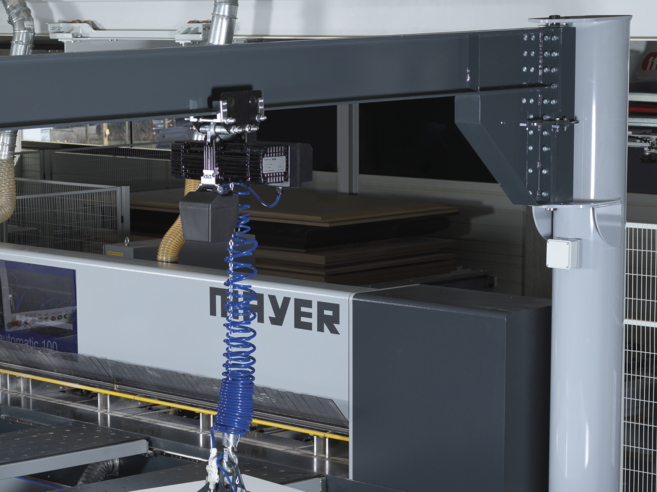

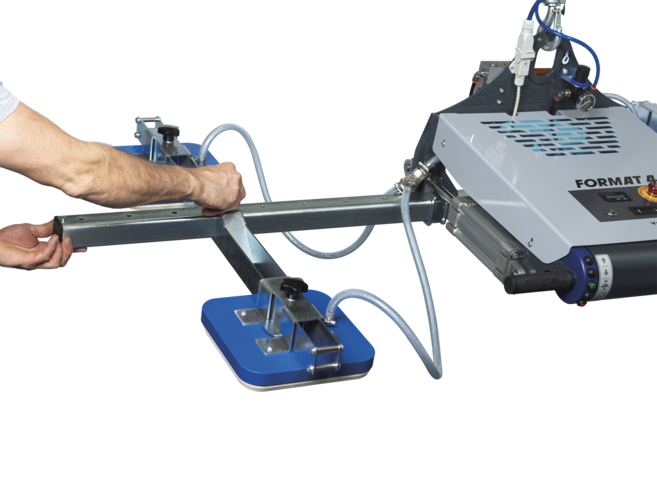

Operator Control Compact Installation Reinforced
Crossbeam

Effortless panel handling for one-person

Lift Smarter, not Harder

The Format4 V-Motion 20.90 Classic is an ergonomic vacuum panel lifter designed for single-person operation, capable of handling panels up to 200 kg with a 0°–90° tilt range, facilitating efficient horizontal and vertical transport in woodworking and material handling applications.
