Spindle Moulders

Felder Group offers a full range of spindle moulders across Hammer, Felder, and Format4 to suit every level of woodworking. Hammer’s F3 is ideal for small workshops, with compact design, tilting spindle, and solid cast construction. Felder models like the F 500 M, F 700 M/Z, and F 900 M add rearward tilting spindles (90°–45°), Power-Drive electronic controls, and quick-change spindles for precision and flexibility. For advanced industrial needs, Format4’s Profil series delivers top-tier performance with dual-axis tilt (±46°), HSK 63F tooling, and programmable touchscreen control for full production-line efficiency.

Filter
F 500 M
FELDER

F 500 M

POA
POA
• Table Opening: 180 mm
• Max Tool Diameter: 220 mm
• Quick Change System: Optional
• Speeds: 3000, 6000, 8000, 10000 rpm
F 500 MS
FELDER

F 500 MS

POA
POA
• Table Opening: 180 mm
• Max Tool Diameter: 220 mm
• Quick Change System: Optional
• Speeds: 3000, 6000, 8000, 10000 rpm
F 700 M
FELDER

F 700 M

POA
POA
• Table Opening: 230 mm
• Max Tool Diameter: 230 mm
• Quick Change System: Yes
• Speeds: 3500, 6500, 8000, 10000 rpm
F 700 Z
FELDER

F 700 Z

POA
POA
• Table Opening: 230 mm
• Max Tool Diameter: 230 mm
• Quick Change System: Yes
• Speeds: 3500, 6500, 8000, 10000 rpm
F 900 M
FELDER

F 900 M

POA
POA
• Table Opening: 320 mm
• Max Tool Diameter: 230 mm
• Quick Change System: Yes
• Speeds: 3500, 4500, 6000, 8000, 10000 rpm
F 900 Z
FELDER

F 900 Z

POA
POA
• Table Opening: 320 mm
• Max Tool Diameter: 230 mm
• Quick Change System: Yes
• Speeds: 3500, 4500, 6000, 8000, 10000 rpm
F3
Hammer

F3

POA
POA
• Table Opening: 180 mm
• Max Tool Diameter: 220 mm
• Quick Change System: Optional
• Speeds: 3000, 6000, 8000, 10000 rpm
profil 45 M
FORMAT 4

profil 45 M

POA
POA
• Table Opening: 320 mm
• Max Tool Diameter: 250 mm
• Quick Change System: Yes
• Speeds: Power-Drive
profil 45 M x-motion
FORMAT 4

profil 45 M x-motion

POA
POA
• Table Opening: 320 mm
• Max Tool Diameter: 250 mm
• Quick Change System: Yes
• Speeds: x-motion Touch Screen
profil 45 Z
FORMAT 4

profil 45 Z

POA
POA
• Table Opening: 320 mm
• Max Tool Diameter: 250 mm
• Quick Change System: Yes
• Speeds: 3500, 4500, 6000, 8000, 10000 rpm
profil 45 Z x-motion
FORMAT 4

profil 45 Z x-motion

POA
POA
• Table Opening: 320 mm
• Max Tool Diameter: 250 mm
• Quick Change System: Yes
• Speeds: x-motion Touch Screen
profil 92 M e-motion
FORMAT 4

profil 92 M e-motion

POA
POA
• Table Opening: 320 mm
• Max Tool Diameter: 250 mm
• Quick Change System: Yes
• Speeds: e-motion Touch Screen

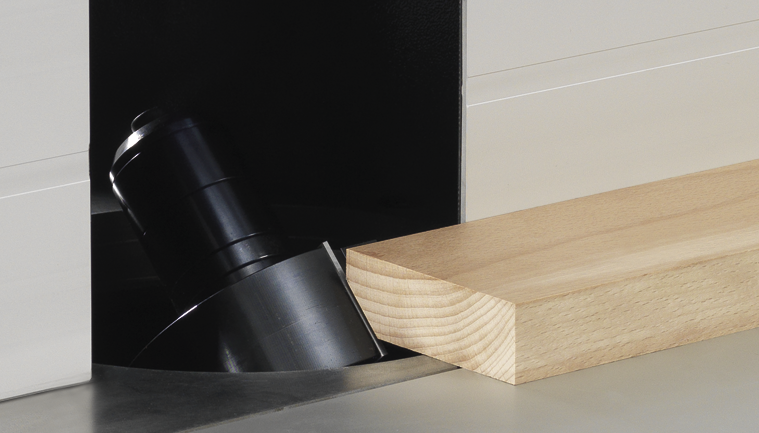

Power Drive

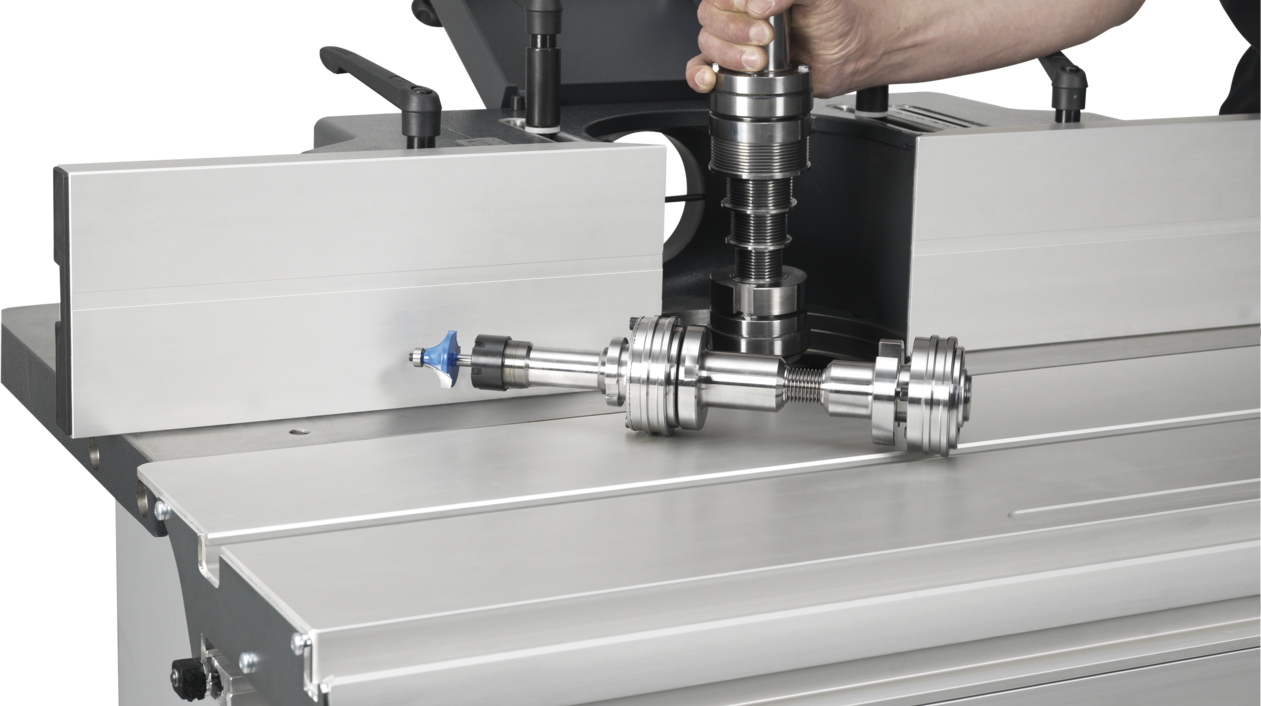

Spindle Tilt Quick Change
Spindle

From fine detail to heavy-duty

Tilt the standard in your favour.

The Felder F 700 M is a precision tilting spindle moulder with a robust cast iron table, rearward spindle tilt from 90° to 45°, Power-Drive electronic adjustments, quick-change spindle system, and high-speed operation up to 10,000 rpm—ideal for demanding, professional woodworking applications.
